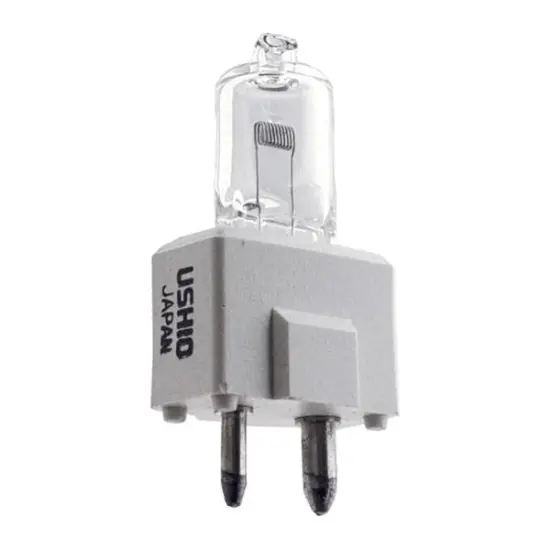

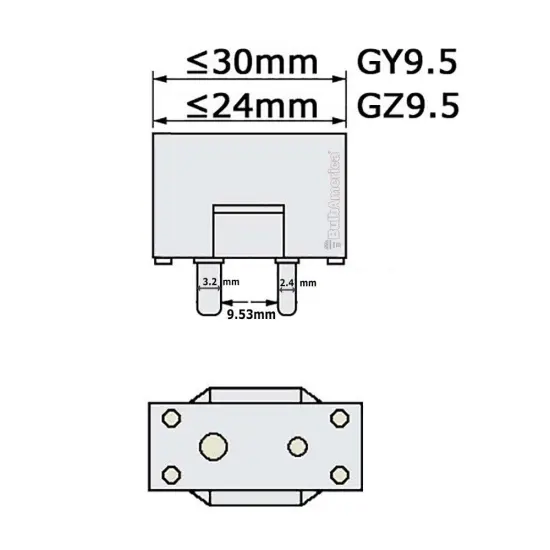

The Ushio FDT replacement lamp has a Ushio product code of 1000504. This Ushio FDT lamp is a 100 watt bulb. The Ushio FDT bulb is a 12 volt bulb. The Ushio FDT replacement bulb has a part number of BC2424. This Ushio lamp has an ANSI code of FDT. The bulb type of this Ushio JC12V-100W lamp is type T-3.5. The base type of the Ushio FDT replacement bulb may also be called T3.5. The Ushio FDT replacement lamp has a base type of GY9.5 (2-Pin Prefocus). The maximum overall length of the Ushio FDT replacement lamp is 2.244 inches or 57.0 millimeters. The bulb diameter of the Ushio JC12V-100W replacement bulb is 0.453 inches or 11.5 millimeters. The light center length of this Ushio FDT bulb is 1.063 inches or 27.0 millimeters. The Ushio JC12V-100W replacement lamp is often referred to by the product code 1000504. The manufacturer continuous use average life rating for this Ushio FDT lamp is 50 hours. The color temperature of this replacement bulb is 3300 degrees Kelvin. The rated lumens value of the Ushio FDT replacement lamp is 2900. The filament type of this Ushio JC12V-100W bulb is CBar6. The Ushio FDT replacement bulb has a Clear finish. The operating position of this replacement lamp is HD. Features:
- ANSI Code: FDT,JC12V GY9.5
- Wattage: 100W
- Voltage: 12V
- Base: GY9.5
- Average Rated Life: 50 hours

Prod. ID / Ansi code	FDT
Description	FDT,JC12V GY9.5
Description 2	100W 12V GY9.5
Item Type	Halogen
Base	GY9.5
Voltage	12v
Wattage	100w
Burn Position	BD/HZ
Bulb Shape	T3.5
Bulb finish	CLEAR
Color Temp
