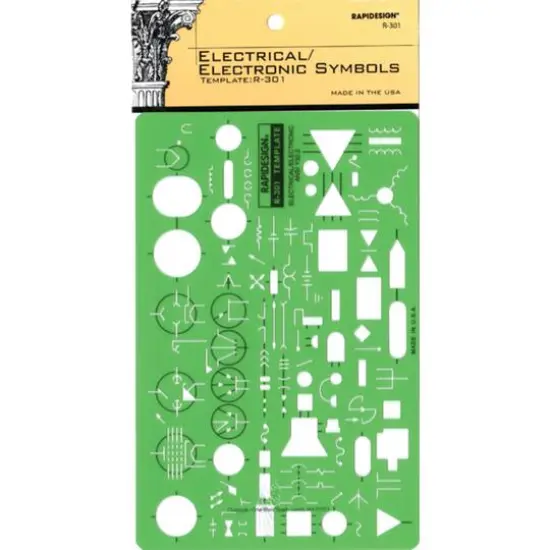

This convenient inking template features the most comprehensive set of electrical/electronic templates, taken from ANSI Y32.2 symbols, grouped into sections for easy use. All shapes are in correct relative sizes so that any size grid can be obtained through photographic reduction.
Details:
Complete set that provides nearly all electrical and electronic symbols
Flexible
Durable plastic construction
For use with pen or pencil
